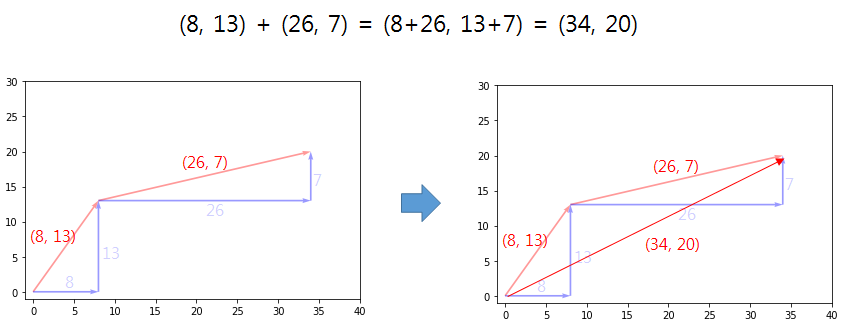

覯″一 ъ 企慨.

--豌 讌覲瑚碓 貊螳 譬 蟲襴 企.
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.cm as cm

a = np.array([8,13])
b = np.array([26,7])
z = np.array([0,0])

a_arrow1 = np.array([np.concatenate((z, a))])
start_point1 = [sum(a_arrow1[0, (0,2)]), sum(a_arrow1[0, (1,3)])]
b_arrow1 = np.array([np.concatenate((start_point1, b))])

a1 = np.array([a[0],0])
b1 = np.array([0,a[1]])
a_arrow2 = np.array([np.concatenate((z, a1))])
start_point2 = [sum(a_arrow2[0, (0,2)]), sum(a_arrow2[0, (1,3)])]
b_arrow2 = np.array([np.concatenate((start_point2, b1))])


a2 = np.array([b[0],0])
b2 = np.array([0,b[1]])
a_arrow3 = np.array([np.concatenate((a, a2))])
start_point3 = [sum(a_arrow3[0, (0,2)]), sum(a_arrow3[0, (1,3)])]
b_arrow3 = np.array([np.concatenate((start_point3, b2))])


v = np.concatenate((a_arrow1, b_arrow1, a_arrow2, b_arrow2, a_arrow3, b_arrow3), axis=0)
X, Y, U, V = zip(*v)

plt.figure()
ax = plt.gca()
ax.set_xlim([-1, 40])
ax.set_ylim([-1, 30])

ax.quiver(X, Y, U, V,
          angles='xy',
          scale_units='xy',
          scale=1,
          alpha=0.4,
          width=0.005,
          color=['r']*2 + ['b']*4
          )
ax.annotate("(" + ",".join(str(x) for x in a.tolist()) + ")", xy=a)
ax.annotate("(" + ",".join(str(x) for x in a+b.tolist()) + ")", xy=a+b)
ax.annotate("(" + ",".join(str(x) for x in start_point2) + ")", xy=start_point2)
ax.annotate("(" + ",".join(str(x) for x in start_point3) + ")", xy=start_point3)
plt.draw()
plt.show()

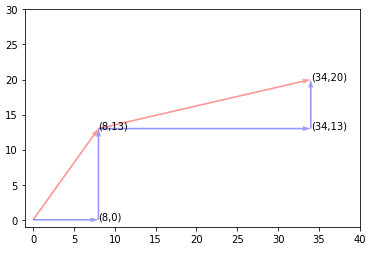

蟆郁骸
蠍 蠍郁鍵..
